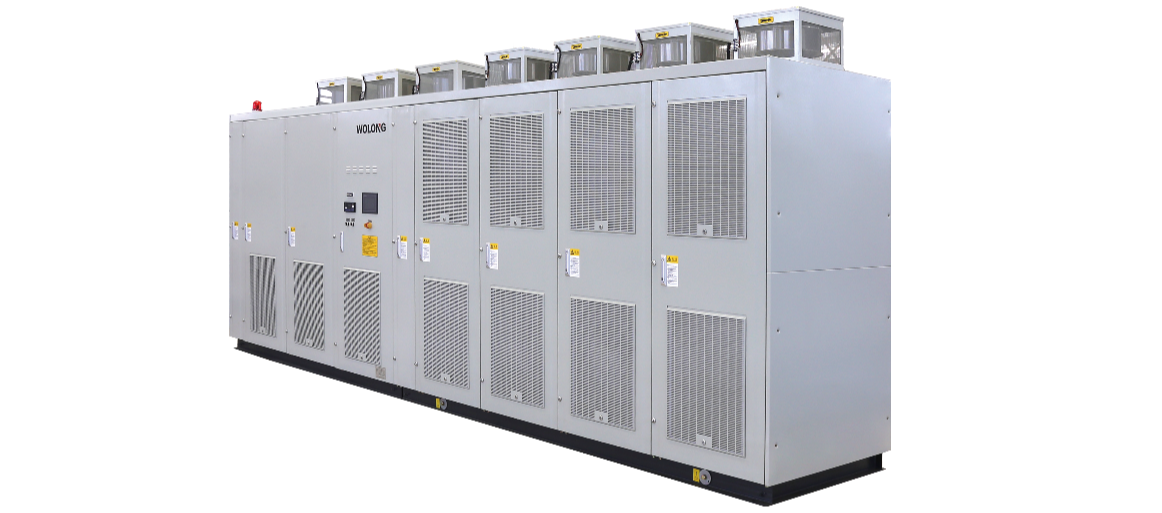

5100 Series Air-cooled High Voltage VFD

The variable frequency system adopts voltage source type multi-level topology and split cabinet design. The power cells are equipped with dry metalized film capacitors. The variable frequency system adopts dry phase-shifting transformer, applying multi-pu

Product Features

Split cabinet structure design

Voltage source type multi-level topology, split cabinet design
Film capacitors

Select dry type metalised film capacitors
High performance

High efficiency, high power factor, no special requirements for the motor


Operating Conditions

0℃～+40℃

Ambient air temperature
Monthly average ≤90%

Humidity
≤1000m.a.s.l.

Altitude

Product Parameters

Model	RMVC/WD(5100 Air-cooled Series )
Capacity Range	200kVA~20000kVA【Take 10kV for example】
Input Voltage	3.3kV~35kV
Output Voltage	3.3kV~13.8kV
System Composition	Pre-charging cabinet, phase shifting transformer, power cell cabinet, control cabinet
IGBT Voltage	1700V
Transformer Type	Dry type phase shifting transformer

Typical applications

Green industries solutions

According to the report of the International Energy Agency (IEA), industrial energy consumption accounts for 37% of global total energy consumption and 24% of global carbon dioxide emissions. In the compressor and circulating water pump system, using Wolong efficient system solution can improve the system energy efficiency by 20%.

Learn more
